Compact Size. Exceptional Versatility.

The RIPPA RL06 Compact Wheel Loader is designed to deliver reliable performance, outstanding maneuverability, and exceptional versatility across a wide range of applications. Ideal for farms, landscaping projects, property maintenance, material handling, and light construction work, the RL06 combines a compact footprint with powerful lifting capabilities to help operators work efficiently in confined spaces.

Powered by the renowned Kubota D1105 engine and built with a durable articulated chassis, the RL06 provides smooth operation, excellent fuel economy, and dependable performance throughout demanding daily tasks. Its compact design allows easy access to areas where larger machines simply cannot operate.

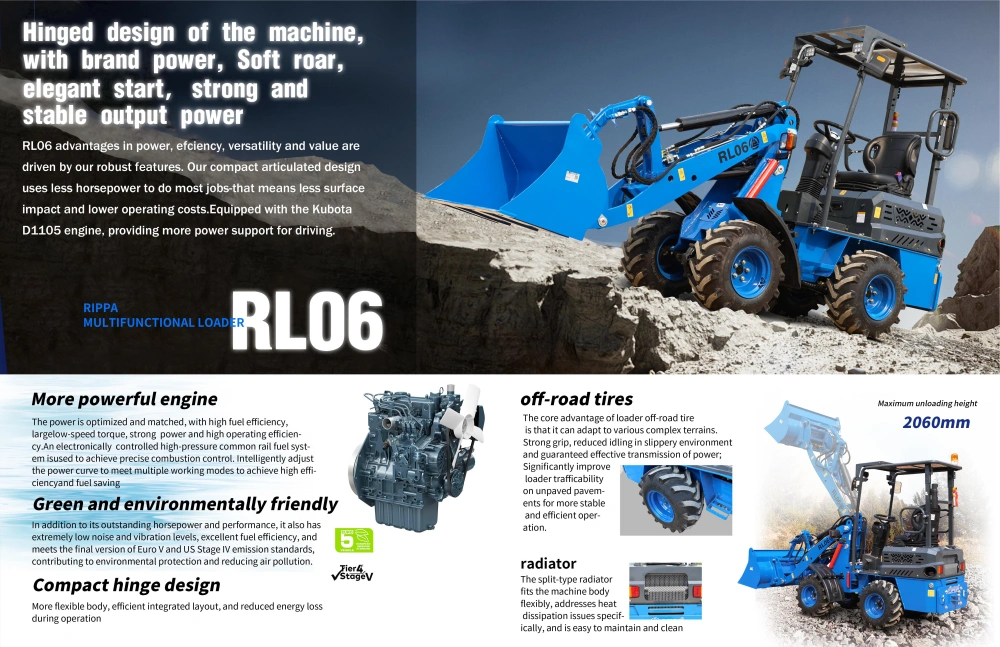

Reliable and Efficient Power

At the heart of the RL06 is the proven Kubota D1105 diesel engine, delivering dependable power, low fuel consumption, and long-term reliability.

Designed for productivity and efficiency, the engine provides smooth power delivery and strong low-speed performance, ensuring effective operation during loading, transporting, and lifting applications.

Whether handling soil, gravel, feed, mulch, or construction materials, the RL06 offers the performance needed to complete tasks quickly and efficiently.

컴팩트한 굴절식 설계

The RL06 features a compact articulated steering system that provides excellent maneuverability and control in restricted working environments.

혜택은 다음과 같습니다:

• Tight turning radius
• Flexible steering performance
• Improved stability during operation
• Reduced surface disturbance
• Easy navigation through narrow spaces

Its compact dimensions make the RL06 an excellent choice for agricultural facilities, greenhouses, residential properties, warehouses, and landscaping projects.

Built for Demanding Applications

Engineered with durability in mind, the RL06 features reinforced structural components, heavy-duty off-road tires, and a robust hydraulic system designed to perform in challenging environments.

Its rugged construction delivers:

• 울퉁불퉁한 지형에서도 뛰어난 접지력
• Reliable lifting performance
• Enhanced machine stability
• Long service life with reduced maintenance requirements

The reinforced bucket and dual hydraulic lifting cylinders provide smooth and balanced lifting performance, improving efficiency during loading and material handling operations.

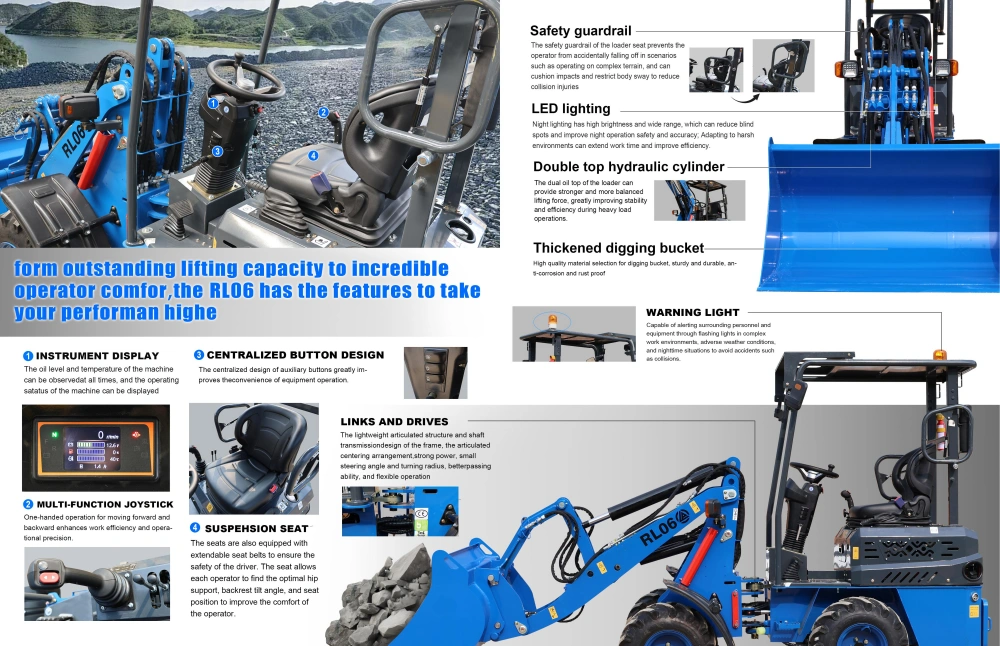

Operator Comfort and Safety

The RL06 is designed to provide a comfortable and productive operating experience throughout the workday.

주요 기능은 다음과 같습니다:

• Digital instrument display
• Multifunction joystick control
• Ergonomic operator station
• Suspension seat with safety belt
• 고휘도 LED 작업등
• Safety guardrails and warning beacon

The intuitive control layout improves operational precision while helping reduce operator fatigue during extended working hours.

Easy Maintenance and Serviceability

Routine maintenance is fast and convenient thanks to the RL06’s practical service design.

Key maintenance features include:

• Easy-access engine compartment
• 체계적인 유압 및 전기 배선 배치
• Quick-change connector system
• Accessible filters and service points
• Simplified daily inspection procedures

These design advantages help minimize downtime and maximize productivity on the job site.

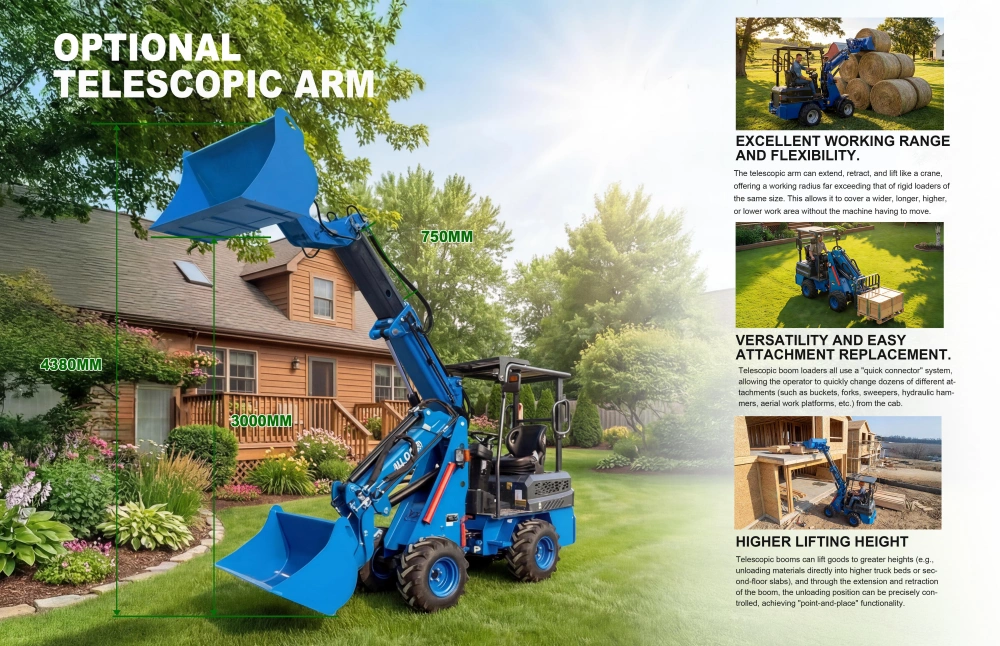

Optional Telescopic Boom

For customers requiring additional reach and lifting height, the RL06 is available with an optional telescopic boom.

The telescopic arm significantly expands the machine’s working range, allowing operators to:

• Reach higher loading points
• Handle materials more efficiently
• Access difficult work areas
• Increase productivity without repositioning the machine

This option makes the RL06 particularly suitable for agricultural operations, pallet handling, and landscaping applications.

다양한 애플리케이션

The RL06 Compact Wheel Loader is suitable for a wide variety of industries and work environments:

• 농업
• 조경
• Property Maintenance
• 자재 취급
• 창고 보관
• Municipal Services
• Light Construction
• 제설

Its versatility and compact size make it a valuable machine for businesses seeking efficient material handling solutions.

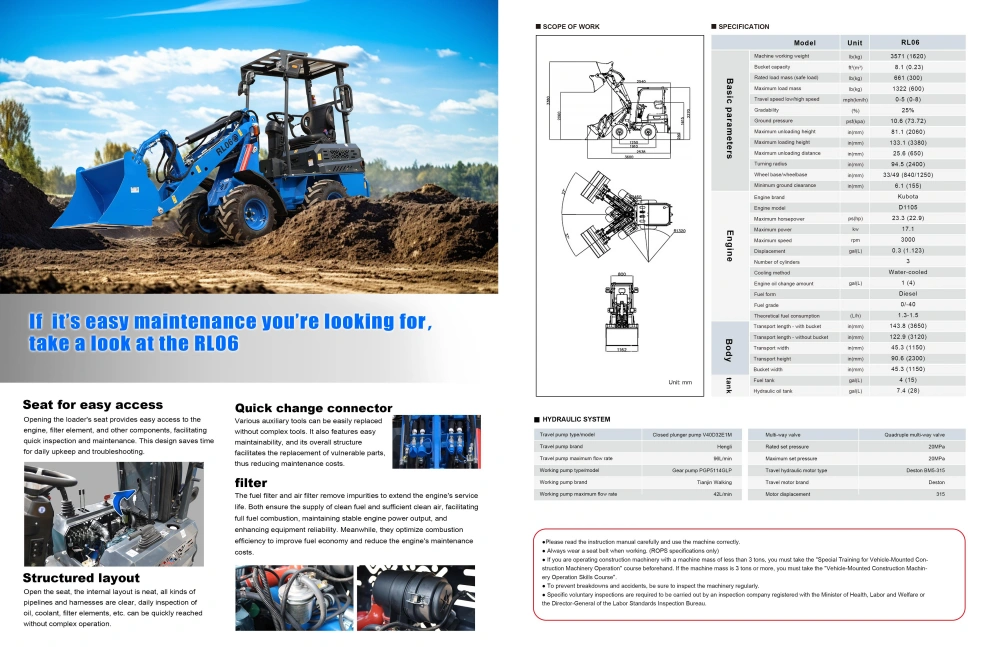

기술 사양

항목	사양
작동 무게	1620 kg
Rated Load Capacity	300 kg
버킷 용량	0.23 m³
Maximum Dumping Height	2060 mm
엔진	Kubota D1105
엔진 파워	17.1 kW (22.9 HP)
최대 주행 속도	20 km/h
지상고	155 mm
Turning Radius	2400 mm
치수 (길이×너비×높이)	3120 × 1050 × 2300 mm

Why Choose the RIPPA RL06?

Combining compact dimensions, reliable Kubota power, exceptional maneuverability, and versatile attachment compatibility, the RIPPA RL06 delivers professional performance in a wide range of applications. Its operator-friendly design, low operating costs, and optional telescopic boom make it an ideal solution for customers who need maximum productivity from a compact machine.

RIPPA RL06

Compact. Versatile. Efficient.

Built for Everyday Performance.
