Product Introduction

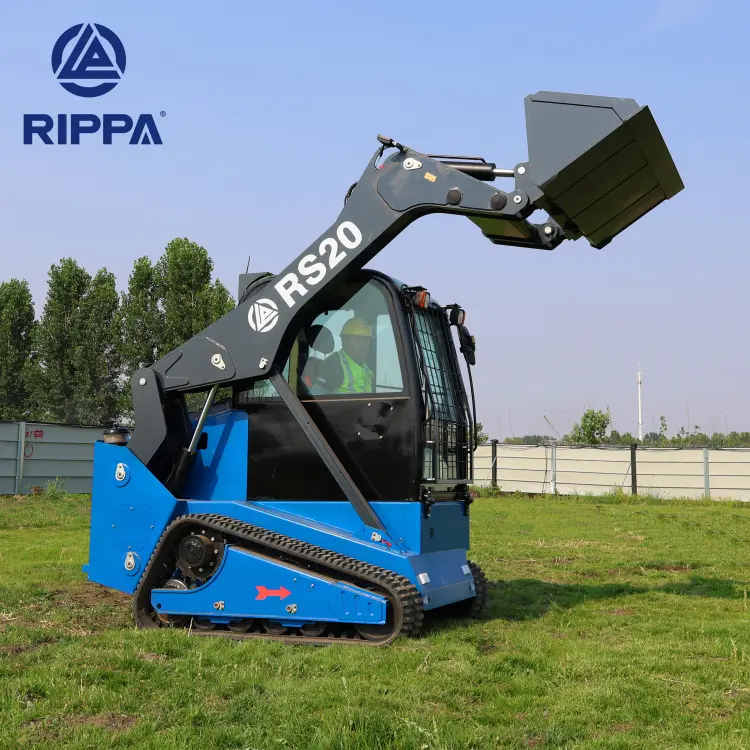

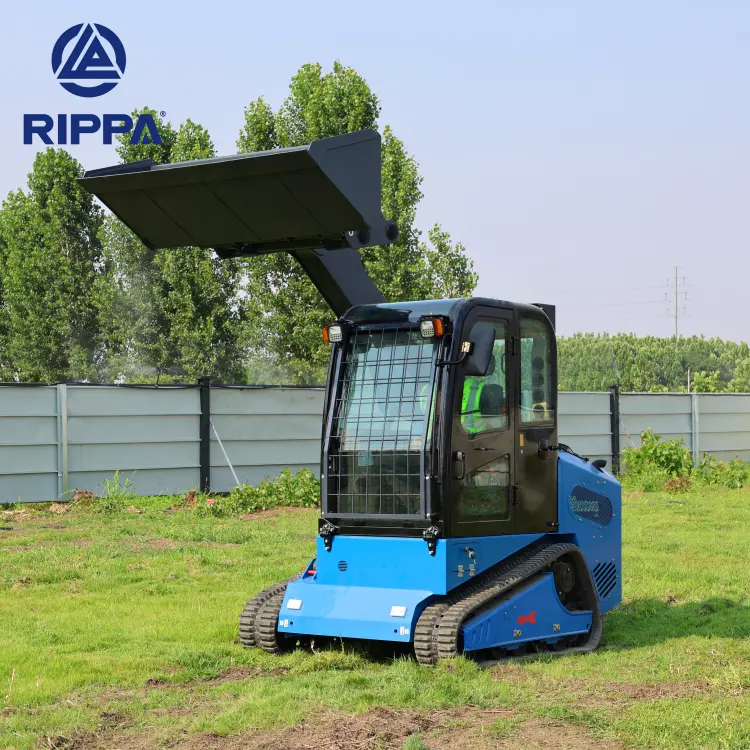

Le RIPPA RS20 skid steer loader is engineered to handle high-intensity, demanding operations with exceptional reliability and performance. Powered by a robust Yanmar engine and optimized for maximum hydraulic flow, the RS20 excels in tasks such as snow clearing, heavy material handling, and urban utility work. Its extended wheelbase enhances operational stability, making it ideal for rugged environments and professional-grade usage.

Powerful Engine Specification

Item	Spécifications
Engine Brand	Yanmar
Engine Model	4TNV98C-PLYS
Max Output Power	49.9 kW
Horsepower	67.4 ps / 66.5 hp
Rated Speed	2400 rpm
Displacement	3.319 L
Key Features	Compact design, strong torque output, fuel-efficient, low vibration, and noise-reduced for environmental compatibility.

Ergonomic & Operator-Friendly Design

• Zoned Control Layout: Operational zones are organized for clarity and ease of use.

• Luxury Seat with Suspension: Offers adjustable comfort and integrated safety belt for fatigue-free operation.

• Electronic Joystick Control: Precision-based, ergonomically designed for smoother handling.

• Rocker Switch Panel: Simple interface that enhances operation efficiency and reduces error.

Technical Specifications

Parameter	Metric	Imperial
Operating Weight	4150 kg	9130 lb
Bucket Capacity	0.4 m³	14.1 ft³
Rated Load	1050 kg	2310 lb
Max Load Capacity	2100 kg	4620 lb
Speed (Low / High)	0–5 / 0–10 km/h	0–3.1 / 0–6.2 mph
Maximum Gradeability	25%	—
Ground Pressure	52.16 kPa	11726 psi
Max Dump Height	2250 mm	88.6 in
Max Lift Height	3750 mm	147.6 in
Max Dump Reach	1360 mm	53.5 in
Ground Clearance	230 mm	9.1 in
Transport Length (with bucket)	3820 mm	150.4 in
Transport Length (without bucket)	3040 mm	119.7 in
Transport Width	1850 mm	72.8 in
Transport Height	2460 mm	96.9 in
Bucket Width	1850 mm	72.8 in
Hydraulic Pump Type / Model	Dual Closed Circuit V90C47H3A0	—

Avantages du produit

• High-Flow Hydraulic System: Delivers consistent performance in lifting, digging, and material handling tasks.

• Quick-Attach Compatibility: Supports various work tools to increase jobsite adaptability.

• Track Durability: Reinforced rubber tracks ensure smoother movement over unstable or slippery surfaces.

• Low Noise Emission: Environmentally conscious design reduces jobsite noise impact.

About RIPPA Group

RIPPA GROUP, headquartered in the High-tech Industrial Park of Jining, Shandong Province, is a national-level high-tech enterprise with full import-export rights. Known for precision engineering and a strong commitment to quality, RIPPA provides dependable construction machinery to global partners, backed by innovation and customer-focused service.
